AS700 guide

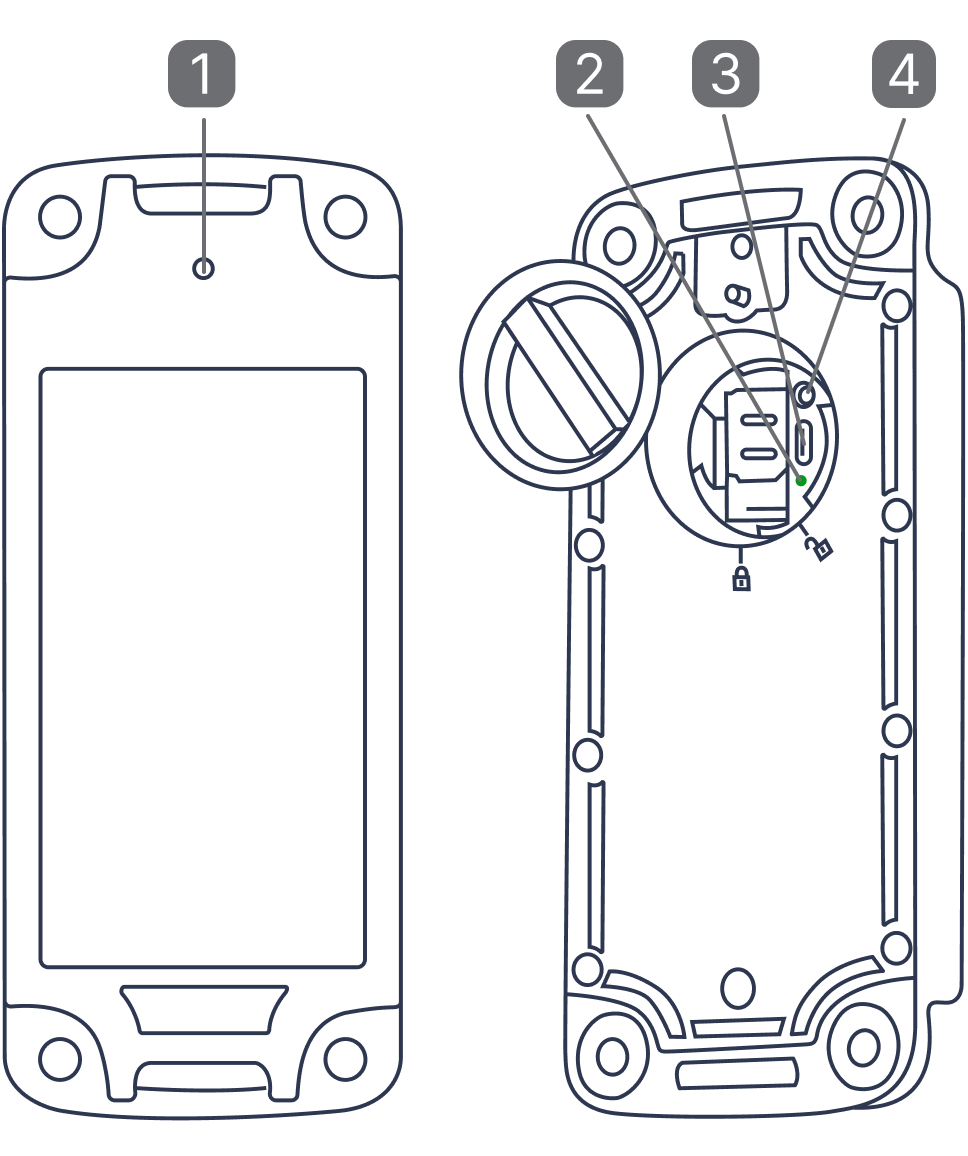

Get in touch
1. Status indicator
2. Light indicator
3. Charging port
3. Power button
GPS Trackers need a clear view of the sky to properly receive signals and work best when the device is outdoors, and in or under the vehicle. Wi-Fi or cellular location will be used when the GPS signal is blocked by metal enclosures (i.e a trunk of a car), concrete, trees, heavy clouds and other interference factors.
Getting Started
Charge your device
Before first use, charge until solid green light appears.

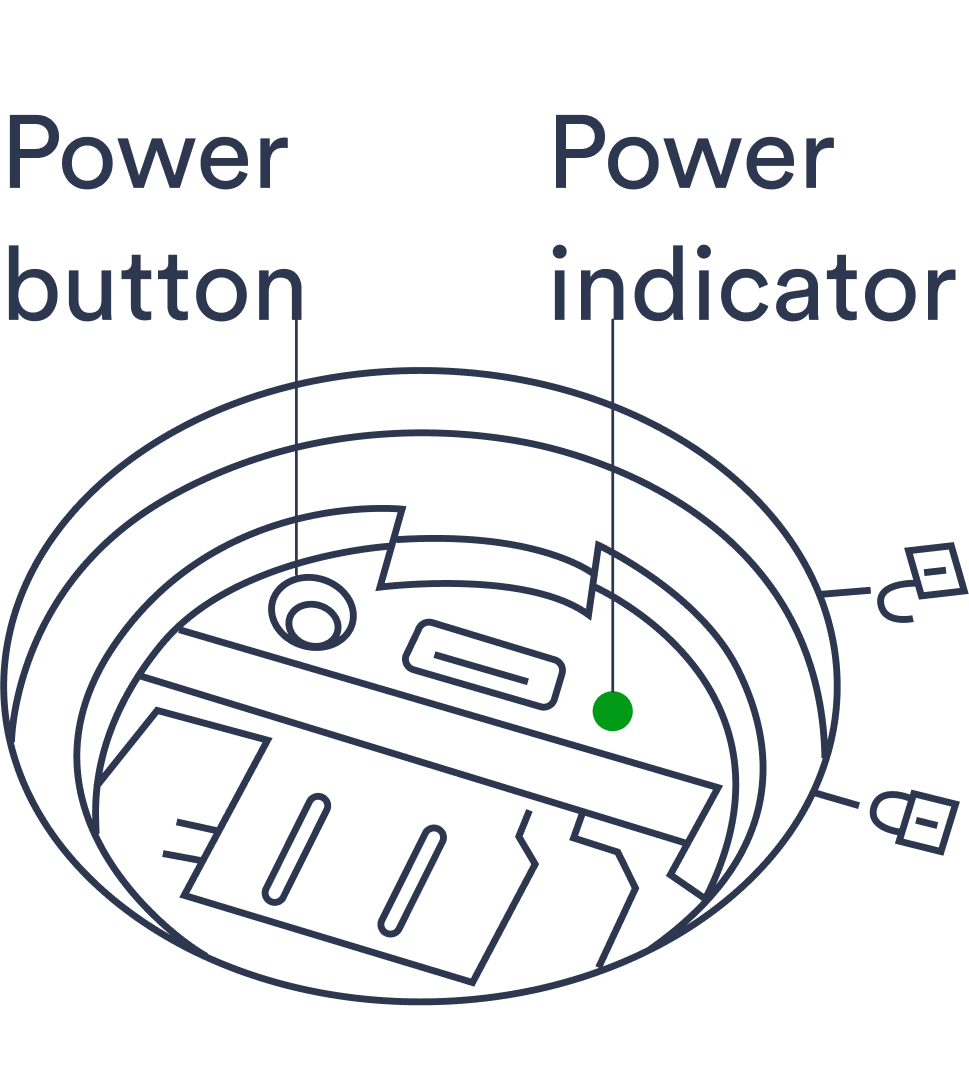

Begin GPS positioning
Press and hold the power button for 3 sec while outdoor.
Check if LED Indicator turns green.
Lights
Device is starting up
Long press 3 sec
Device is powering off
Long press 3 sec
Battery capacity level
76%~100%
Single press
Battery capacity level
51%~75%
Single press
Battery capacity level
26%~50%
Single press
Battery capacity level
0%~25%
Single press
Device is charging
Flashes continuously
